CNC
Machining Equipment

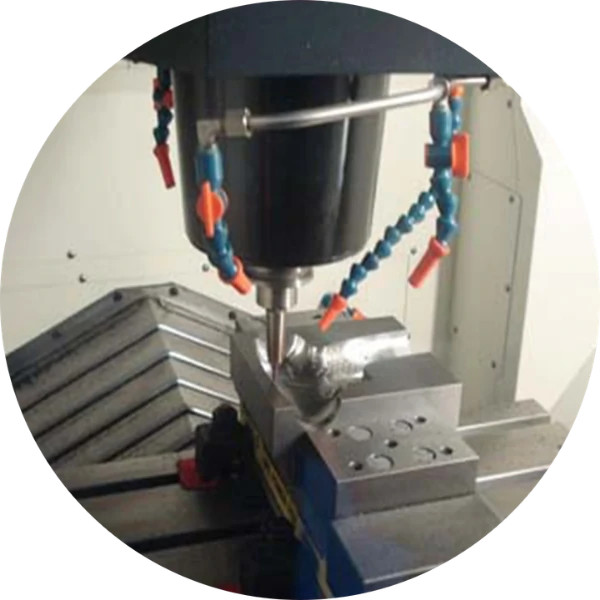

5 Axis CNC Machine
1. X/Y/Zspindle travel(Horizontal): 1060mm*600mm*600mm;
2. Spindle speed/taper hole: 8000rpm*BT40;
3. utlery amount of the tool storage: 20+1Pcs;
4. Largest available cutlery diameter/length/weight: 78mm*300mm*8kg;
5. Cutlery switching pattern: machine arm.

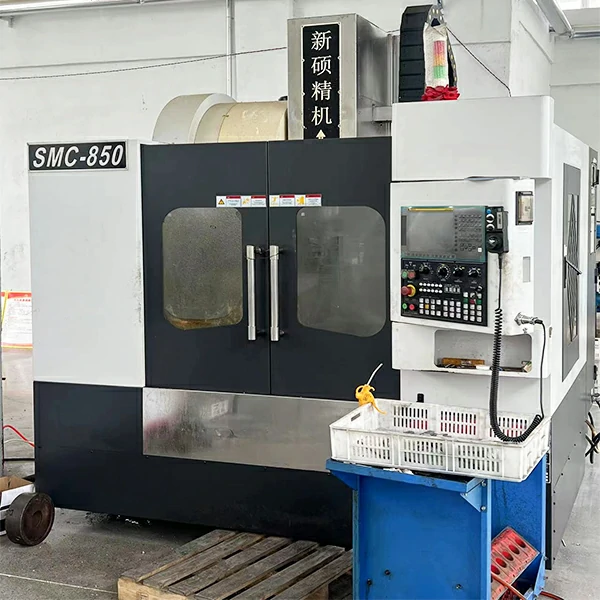

4 Axis CNC Machine
1. X/Y/Z spindle travel(Horizontal/Vertical/): 650*550*550mm;
2. Distance between spindle end to worktable surface: 100-650mm;
3. Distance between spindle center to column slide way: 605mm;
4. Spindle speed/taper: 8000rpm*BT40;
5. Cutlery amount of the tool storage: 20+1Pcs;
6. Largest available cutlery diameter/length: 78mm*300mm;
7. Tool switch time: 1.8sec;
8. Largest available cutlery weight: 8kg;
9. Cutlery switching pattern: machine arm.
Module
Model
Acc to the size and internal structure of product , the mold have two kinds, One mold with single cavity.

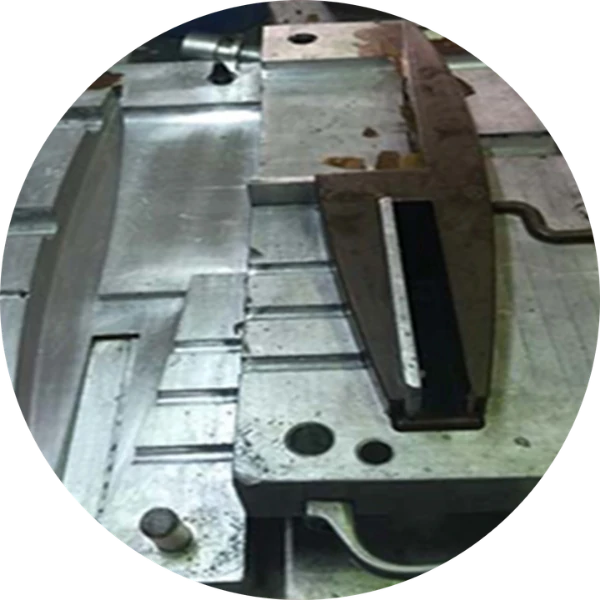

One Mold with Single Cavity
One mold with single cavity

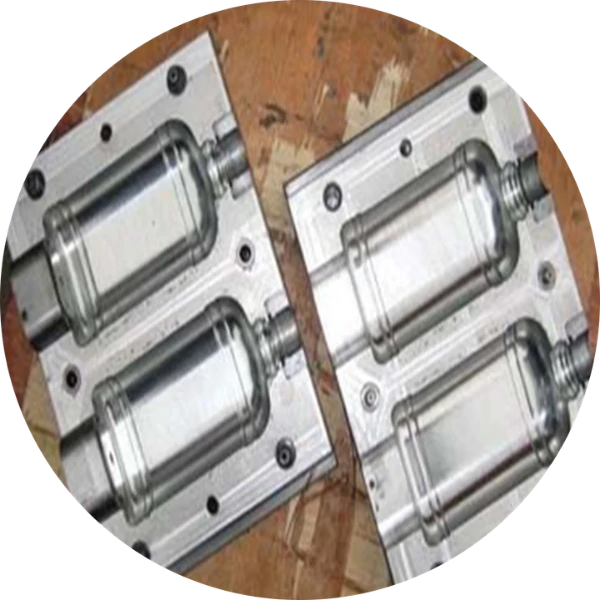

One Mold with Two Cavities
One mold with two cavities

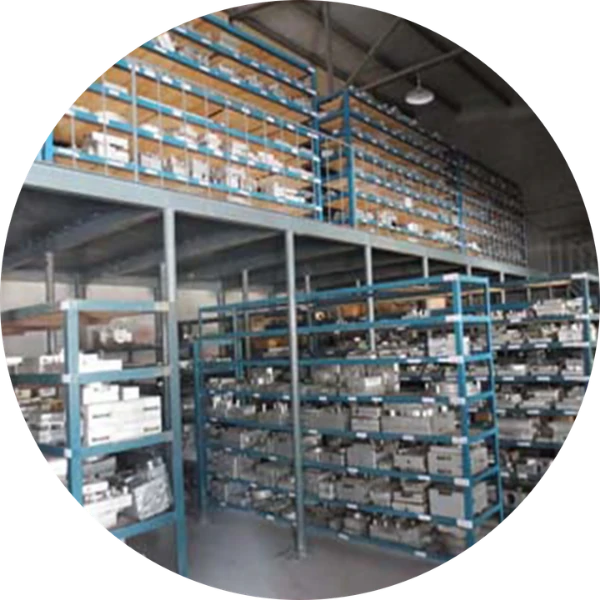

Mold House
Mold house
Testing Equipment

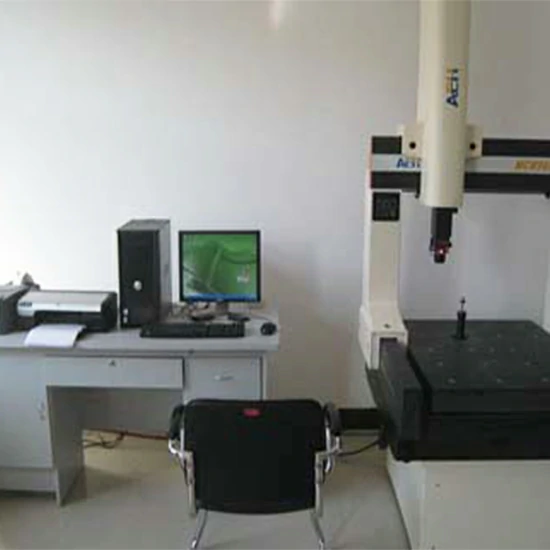

CMM coordinate measuring machine
| 1XCCDadapter(standard) | 0.5XCCD adapter (option) | Working distance | |||
| Zoom lens | 0.7~4.5X | 0.7~4.5X | |||
| Zoom lens | Digital magnification | Visual field | Digital magnification | Visual field | |
| 0.5X(option) | 15~95X | 20~3.2mm | 7.5~48X | 40~6.4mm | 175mm |
| 1X(standard) | 301~90X | 10.6~106mm | 15~96X | 20~3.2mm | 96mm |
| 2X(option) | 60~380X | 5~0.8mm | 30~190X | 10.6~1.6mm | 32mm |

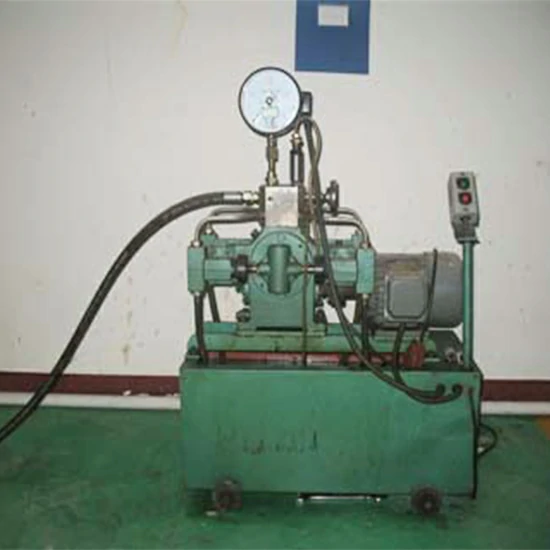

Pressure Test Machine
Acc to the requirements of customer , sometimes we must to test the pressure for Value & Pump parts.

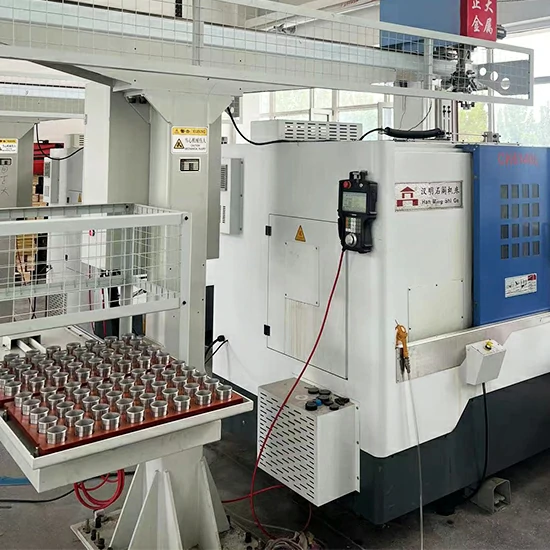

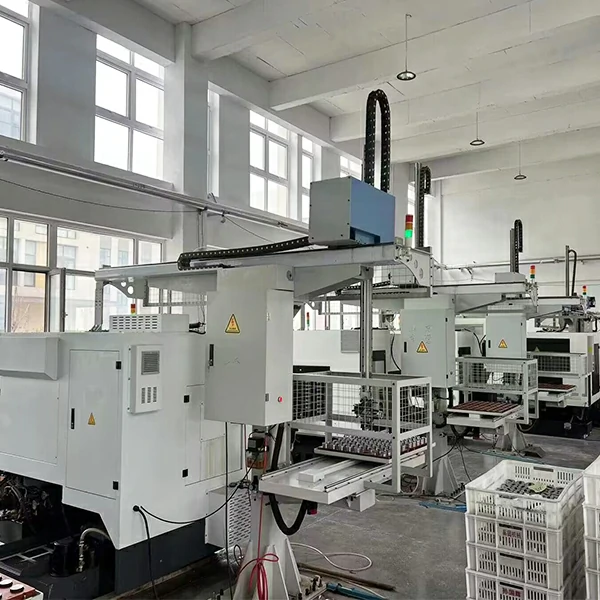

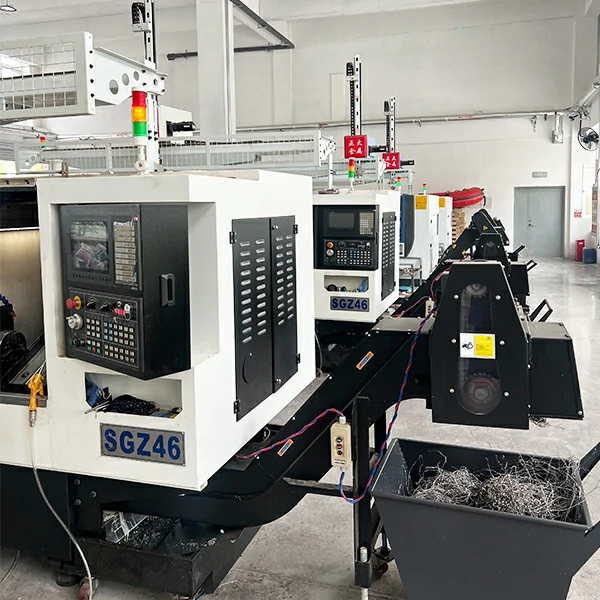

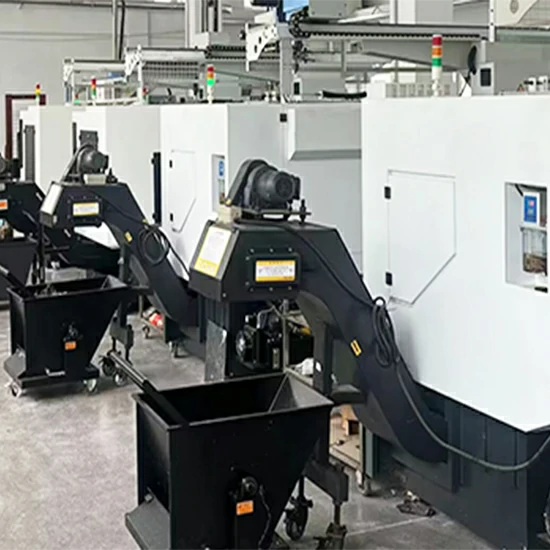

Roberts- No need workers, 24 hours working
